AC Fan Not Spinning? DIY Fixes & Common Causes
Quick Summary:
When your AC fan stops spinning, 70% of cases are caused by a bad capacitor (DIY fix: $15-$35, 30 minutes). This guide covers all causes, step-by-step DIY repairs, safety warnings, and when to call a professional.
Why Your AC Fan Stopped Spinning

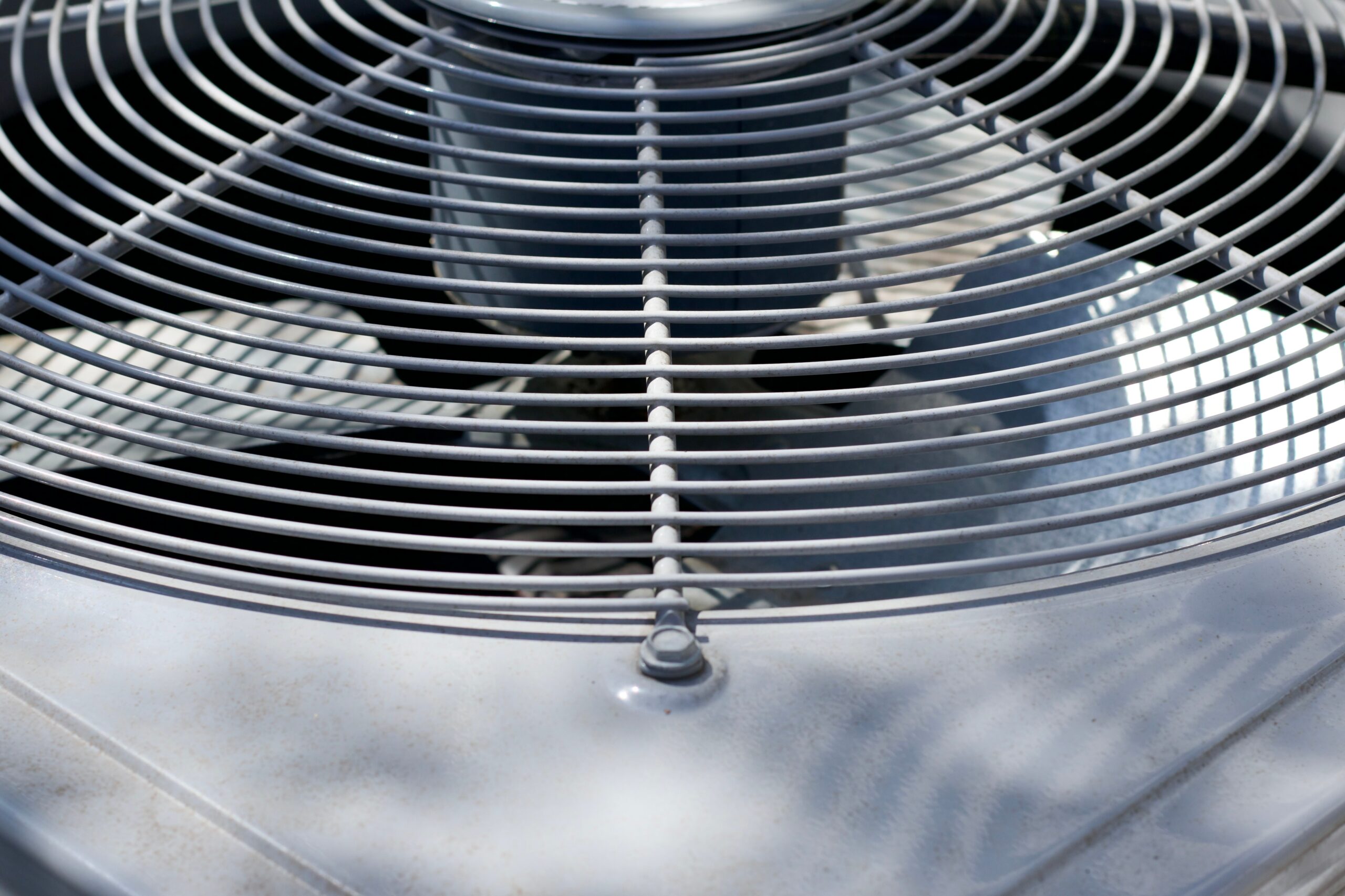

The outdoor condenser fan is responsible for dissipating heat from your AC system. When it stops spinning, your air conditioner cannot release heat, causing indoor temperatures to rise and potentially damaging the compressor. Understanding the cause is critical to applying the right fix and avoiding a $2,000 scam diagnosis from dishonest contractors.
Cause #1: Bad Capacitor (65-75% of cases)
The AC capacitor provides the electrical jolt needed to start the fan motor. When it fails, the motor hums or buzzes but cannot spin. This is by far the most common cause of AC fan not spinning issues.
How to Identify Bad Capacitor:
- •Fan motor is humming or buzzing but blades do not move
- •When manually pushed with a stick (power ON), fan starts and keeps running
- •Capacitor appears swollen or domed on top (visual inspection)
- •Motor feels warm or hot to touch
DIY Capacitor Replacement (Step-by-Step)
CRITICAL SAFETY WARNING
Capacitors store 240-370V even with power off. This voltage is LETHAL. You must discharge the capacitor properly or risk electrocution. If you are uncomfortable with electrical work, hire a licensed professional. This is not an exaggeration.
Step 1: Power Off Everything
Turn off power at TWO locations: (1) Your home's main breaker panel - flip the breaker labeled "AC" or "Condenser", (2) The outdoor disconnect switch next to your AC unit - pull handle or flip switch to OFF. Use a voltage tester to confirm power is off.
Step 2: Access the Capacitor
Remove the access panel (usually side or back of unit) with a screwdriver. The capacitor looks like a silver cylindrical can, typically 2-4 inches tall. It will be near the compressor with multiple wires connected to terminals on top.
Step 3: Photograph Wiring
Take clear photos from multiple angles showing which wires connect to which terminals. Capacitors have labeled terminals (C, HERM, FAN). Wires MUST be reconnected to the exact same positions.
Step 4: Discharge Capacitor
Using an INSULATED screwdriver (handle must be rubber/plastic), touch the metal blade across BOTH terminals simultaneously for 5 seconds. You may see a small spark - this is normal. Repeat discharge twice to be absolutely certain.
DO NOT touch terminals with fingers. DO NOT skip this step. DO NOT use non-insulated tools. This is the most dangerous step.
Step 5: Remove Old Capacitor
Pull wire connectors off terminals (use pliers if tight). Loosen the mounting strap and slide out the capacitor. Note the specifications printed on the side: microfarad rating (e.g., "35/5 µF") and voltage (e.g., "370V"). You MUST buy an exact match.
Step 6: Purchase Replacement
Buy a new capacitor with IDENTICAL specifications from Amazon, Home Depot, or local HVAC supply store. Cost: $15-$35. Brands like Turbo 200, Titan, or Amrad work for all AC brands. Same-day pickup available at most hardware stores.
Example: If your old capacitor is "35/5 µF 370V", buy "35/5 µF 370V". Voltage can be equal or higher (370V or 440V), but microfarad must match exactly.
Step 7: Install New Capacitor
Slide new capacitor into mounting bracket and tighten strap. Reconnect wires to exact same terminals using your reference photos. Push connectors firmly onto terminals. Double-check all connections before proceeding.
Step 8: Test Operation
Replace access panel. Turn on outdoor disconnect, then breaker. Set thermostat to cool mode with temperature below current room temp. Within 30 seconds, fan should start spinning smoothly. If not, recheck wire connections or call a professional.
Cause #2: Failed Fan Motor (15-25% of cases)
If replacing the capacitor does not fix your AC fan not spinning problem, the motor itself has likely failed. Motors fail due to bearing wear, electrical burnout, or age (typically 10-15 years).
Motor Failure Symptoms:
- • Fan completely silent (no humming sound)
- • Motor extremely hot to touch
- • Burning smell from motor
- • Fan does not spin even when manually pushed
- • New capacitor does not resolve issue
DIY Motor Replacement: Challenging but possible for mechanically skilled homeowners. Requires matching motor specifications (HP, voltage, RPM, shaft size), proper wiring, and 2-3 hours of work. DIY cost: $150-$300. Professional: $400-$750.
Cause #3: Debris Blockage (5-10% of cases)
Leaves, grass clippings, cottonwood seeds, and dirt can physically block the fan blades or clog condenser coils. This is the EASIEST fix.
DIY Debris Cleaning (15 minutes):
- 1. Turn off all power
- 2. Remove top grille (4-6 screws)
- 3. Remove visible debris by hand
- 4. Spray condenser coils gently with garden hose (inside-out direction)
- 5. Let dry 30 minutes, reassemble, test
Cost: FREE. Time: 15-30 minutes. Difficulty: Very Easy.
Cause #4: Tripped Breaker or Power Issue (3-5% of cases)
Before assuming component failure, always check power. Go to your breaker panel and look for tripped breakers (switch in middle position). Reset by flipping OFF then ON. Also check the outdoor disconnect switch is in ON position.
When to Call a Professional
While many AC fan repairs are DIY-friendly, some situations require professional expertise:
- ✗You are uncomfortable working with electricity (no shame in this)
- ✗Multiple components failing simultaneously (capacitor + motor + contactor)
- ✗Unit still under warranty (DIY work may void coverage)
- ✗Compressor also not running (requires EPA-certified technician)
Conclusion: Fixing Your Non-Spinning AC Fan
Most AC fan not spinning issues are caused by a $25 capacitor that you can replace in 30 minutes with proper safety precautions. Start with the simplest fixes (check power, remove debris), then move to capacitor replacement, and finally consider motor failure. By following this guide, you can save $200-$400 on professional repairs while gaining valuable troubleshooting skills.
