AC Fan Motor Replacement: Signs, Costs & DIY Tips
Quick Summary:
Condenser fan motor replacement costs $400-$750 professionally or $150-$300 DIY in 2026. Motors last 10-15 years. This guide covers failure signs, replacement steps, cost breakdowns, and critical safety warnings.
When Does an AC Fan Motor Need Replacement?
The condenser fan motor in your outdoor AC unit is designed to last 10-15 years under normal conditions. However, extreme heat, power surges, lack of maintenance, or manufacturing defects can cause premature failure. Unlike a bad capacitor (which can be tested and replaced in 30 minutes), a failed motor requires complete replacement.
IMPORTANT: Test Capacitor First
70% of motors diagnosed as "failed" by contractors are actually good motors with bad capacitors. ALWAYS replace or test the capacitor before condemning a motor. A dishonest contractor will skip this step to sell you a $600 motor instead of a $200 capacitor repair.
Signs Your AC Fan Motor Has Failed
Identifying motor failure vs capacitor failure is critical to avoid unnecessary replacement. Here are the definitive signs:
Definite Motor Failure:
- New capacitor does NOT fix issue
- Motor extremely hot (too hot to touch for 1 second)
- Burning smell from motor
- Fan does not spin when manually pushed (power ON)
- Grinding/screeching noise during operation
- Motor shaft seized (cannot be turned by hand)
Probably Just Capacitor:
- Motor humming but not spinning
- Fan starts when manually pushed
- Motor warm but not excessively hot
- Capacitor visually swollen/domed
- Intermittent operation (works sometimes)
2026 AC Fan Motor Replacement Costs
Air conditioning fan motor replacement is significantly more expensive than capacitor replacement, but fair pricing falls within a predictable range. Understanding these costs prevents contractor scams.
| Cost Component | Fair Price | Typical Range | SCAM Price |
|---|---|---|---|
| Motor Part (1/4 - 1/3 HP) | $180-$280 | $250-$350 | $500-$800 |
| Labor (1.5-2 hours) | $150-$250 | $200-$350 | $400-$700 |
| TOTAL Professional | $350-$530 | $450-$750 | $900-$1,500+ |
| DIY Cost | $150-$300 (parts only) | ||
What Affects Motor Replacement Cost?
- Motor Size: 1/4 HP ($180-$250) vs 1/3 HP ($220-$300) vs 1/2 HP ($250-$350)
- Voltage: 120V motors slightly cheaper than 240V models
- Speed: Single-speed standard, multi-speed motors cost 20-30% more
- Brand: A.O. Smith, Emerson, Fasco are mainstream. "OEM-only" claims are usually false
- Labor Market: Urban areas charge 30-50% more than rural regions
DIY Motor Replacement: Is It Worth It?
Replacing a fan motor on an AC unit yourself saves $250-$450 compared to professional service. However, this is NOT a beginner repair. You must be comfortable with electrical wiring, have the right tools, and ability to work overhead for 2-3 hours.
Attempt DIY If:
- ✓ You have wiring/electrical experience
- ✓ You own basic tools (socket set, screwdrivers, multimeter)
- ✓ You can work overhead comfortably
- ✓ You are patient and methodical
- ✓ You want to save $250-$450
Hire a Pro If:
- ✗ Uncomfortable with electricity
- ✗ No experience reading wiring diagrams
- ✗ Limited tools available
- ✗ Unit still under warranty
- ✗ Not confident in ability
DIY Motor Replacement Steps (Simplified)
SAFETY FIRST:
Turn off ALL power (breaker + disconnect). Discharge capacitor before touching any wires. Use insulated tools. Work during daylight hours. Have someone nearby in case of emergency.
- 1
Identify Motor Specifications
Locate the motor nameplate and record: Horsepower (HP), Voltage, RPM, Rotation direction, Shaft diameter and length, Frame size. Take clear photos. You MUST match ALL specifications.
- 2
Purchase Replacement Motor
Buy from Amazon, HVAC suppliers, or specialty retailers. Universal motors from A.O. Smith, Emerson, or Fasco fit 95% of residential units. Cost: $150-$300 depending on specs. Verify return policy in case specifications don't match.
- 3
Document Everything
Before disconnecting anything: Photograph wiring from multiple angles. Label each wire with tape and marker. Note wire colors and terminal connections. Measure fan blade depth on motor shaft.
- 4
Remove Old Motor
Power off and discharge capacitor. Remove fan grille. Remove fan blade from motor shaft (note set screw position). Disconnect wires. Unbolt motor from mounting bracket. Carefully lower motor out.
- 5

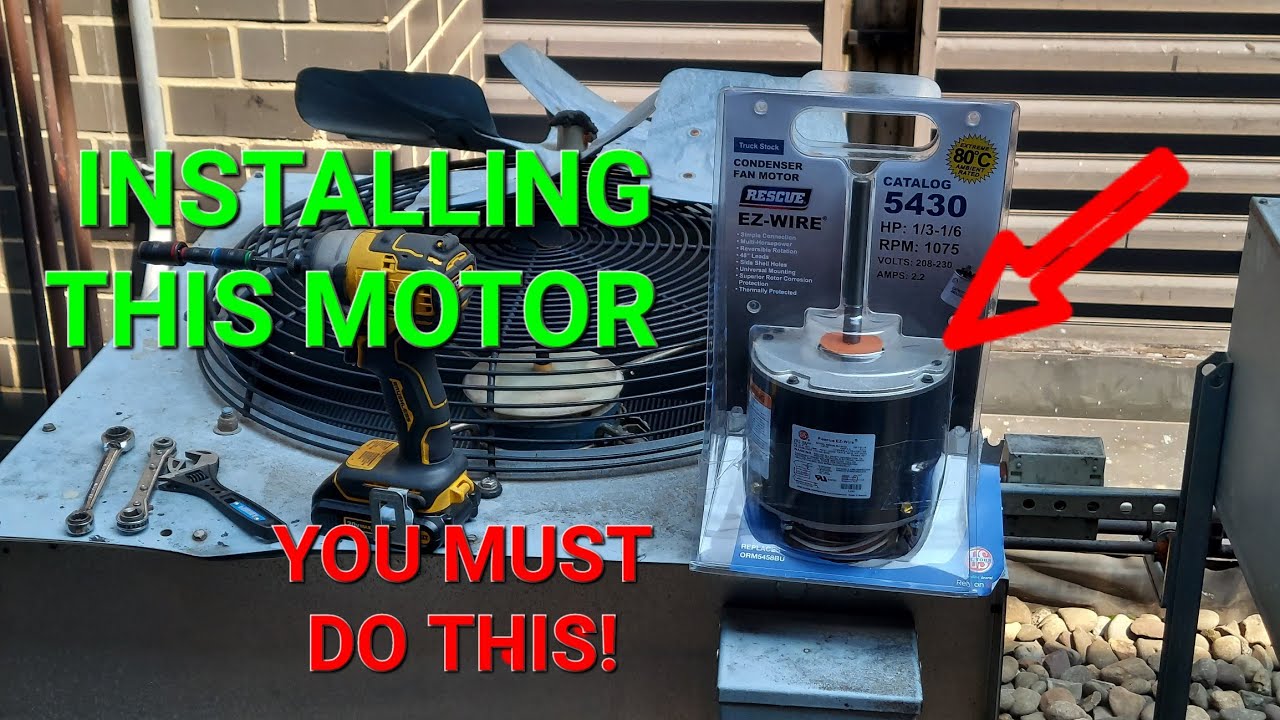

Install New Motor
Mount new motor in same orientation. Tighten mounting bolts securely. Reconnect wires to matching terminals using your photos (match wire colors). Reattach fan blade to exact same shaft depth as before. Tighten set screws firmly.
- 6
Test Before Reassembly
Without grille installed, restore power briefly to test rotation direction. Fan should spin counterclockwise (when viewed from above) for most units. If spinning backward, swap two of the motor wires. Once direction confirmed, complete reassembly.
Common Motor Replacement Mistakes
❌ Mistake #1: Not Testing Capacitor First
70% of motor replacements are unnecessary. Always replace capacitor first ($25) before motor ($300).
❌ Mistake #2: Wrong Motor Specifications
Mismatched HP, voltage, or RPM causes immediate failure. Verify ALL specs match old motor exactly.
❌ Mistake #3: Incorrect Fan Blade Depth
Fan must be same distance from grille. Too close = hits grille. Too far = inefficient airflow.
❌ Mistake #4: Reversed Rotation
Motor spinning backward pushes hot air into condenser instead of pulling it away. Test before final assembly.
Conclusion: AC Fan Motor Replacement Guide
Air conditioning fan motor replacement costs $400-$750 professionally or $150-$300 for DIY in 2026. Before replacing any motor, ALWAYS test the capacitor first - 70% of "dead motors" are actually good motors with bad capacitors. DIY replacement saves $250-$450 but requires electrical experience, proper tools, and 2-3 hours of careful work. If quoted over $1,000 for motor replacement alone, get a second opinion immediately.
